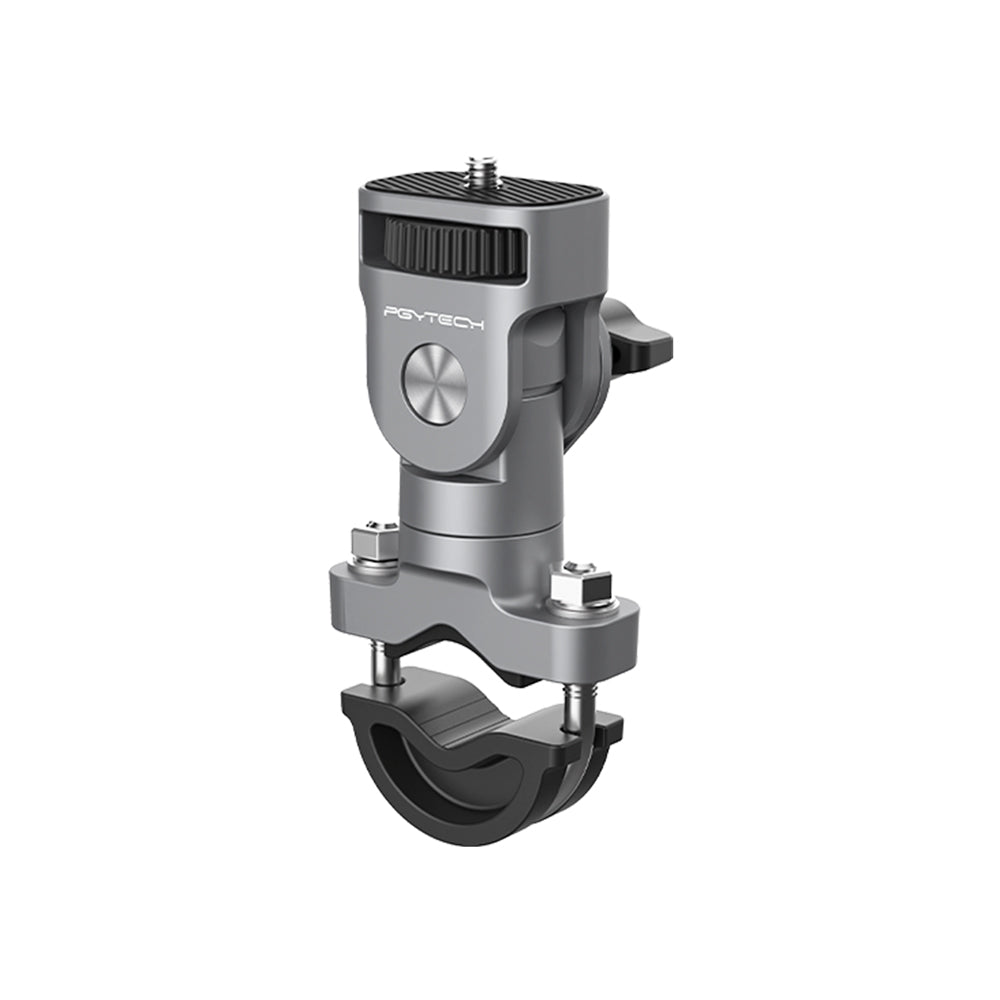

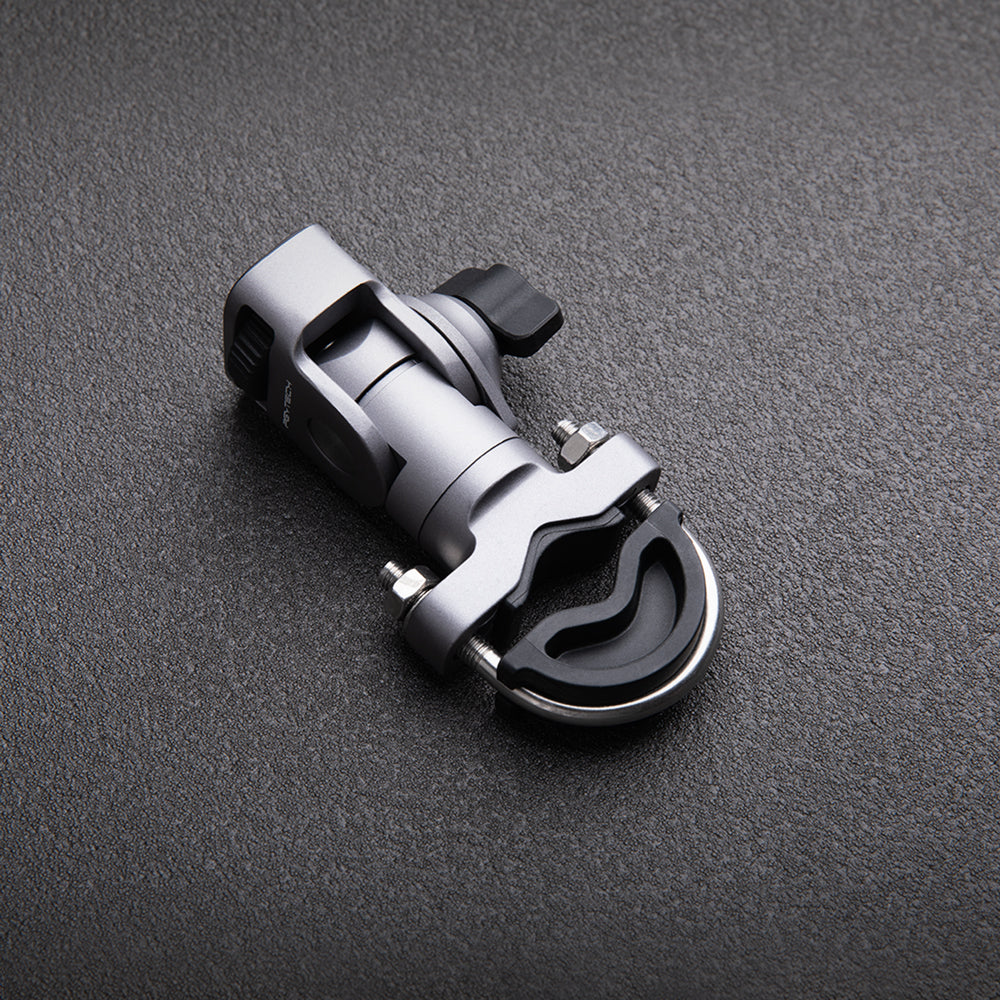

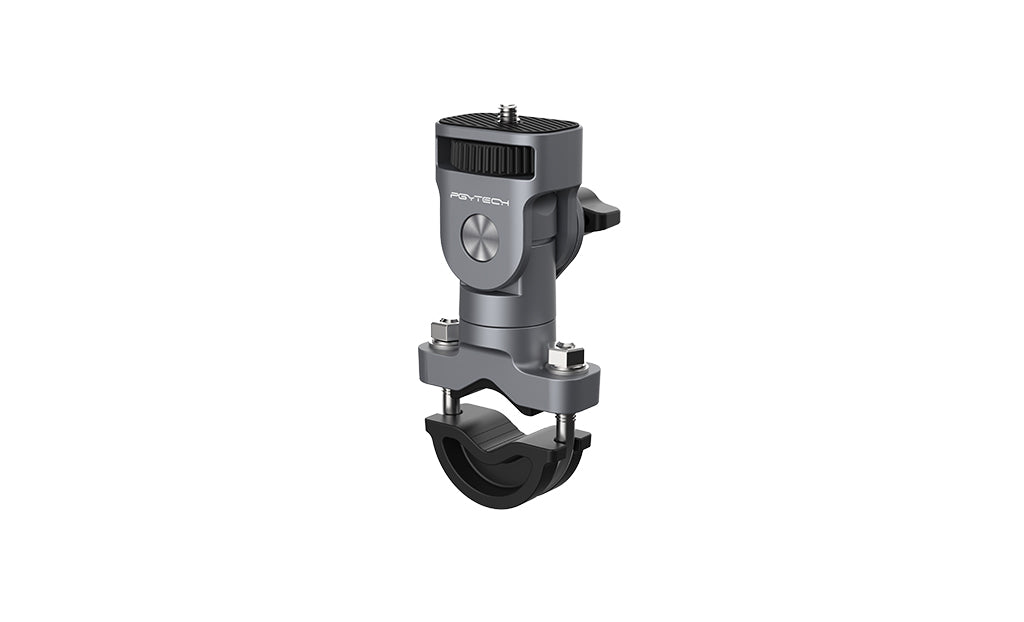

U-Bolt-Berg

Write a Review
$39.95
Menge
- +
P-GM-172

FEATURES:

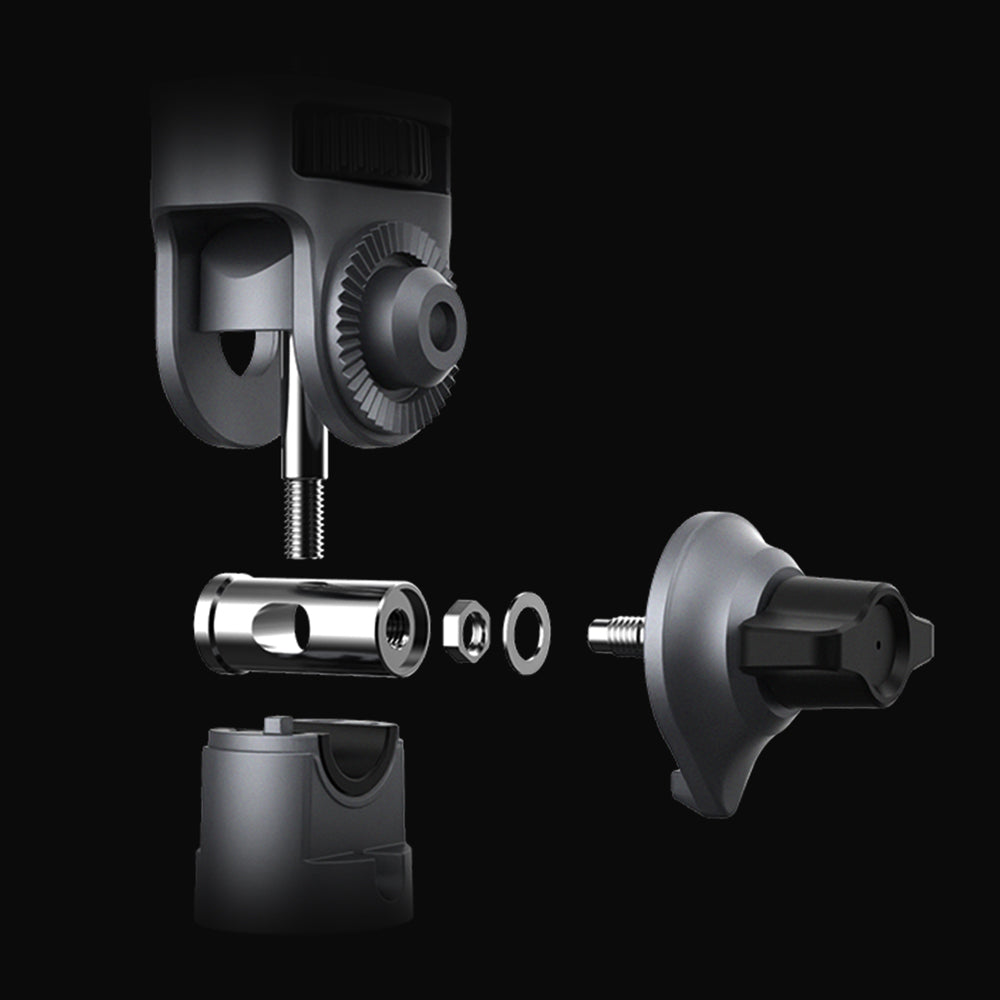

● Patented rosette structure for enhanced safety and stability;
● Effortless angle adjustment, locked with a single wingnut；
● Bidirectional adjustment flexibility for unrestricted perspectives:
● Compatible with φ12.7~33mm tubes:
● Multiple interfaces for wide adaptability;
●Light and portable;
●CapLock patent system for efficient assembly and disassembly;
● High-strength aluminum alloy for enhanced durability.

Shipping
Return
CheckOut securely with
Visa Mastercard American Express PayPal Diners Club Discover JCB Maestro
Delivery from US warehouse within 3-5 working days, shipping included：
·60 Days Money Back Guarantee
·100% Quality Guarantee
·Worldwide Shipping
Product Info Specifications What's in the Box FAQ Reviews

Specifications

  • Name

    U-Bolt Mount

  • No.

    P-GM-172

  • Material

    Main Materials: Aluminum Alloy, PA (polyamide), Rubber

  • Net Weight

    208g

  • Size

    Package Size: 186mm*182mm*43mm
    Product Size: 106mm*57mm*53mm

  • Compatibility

    Action cameras/Smartphones

  • U-Bolt Mount

  • 1. What is the weight of the U-bolt mount?

    The net weight is 208g.

  • 2. What are the dimensions of the U-bolt mount?

    106*57*53mm.

  • 3. What materials are used in the U-bolt mount?

    Aluminum alloy, PA (polyamide), and rubber.

  • 4. What is the clamping range of the U-bolt mount?

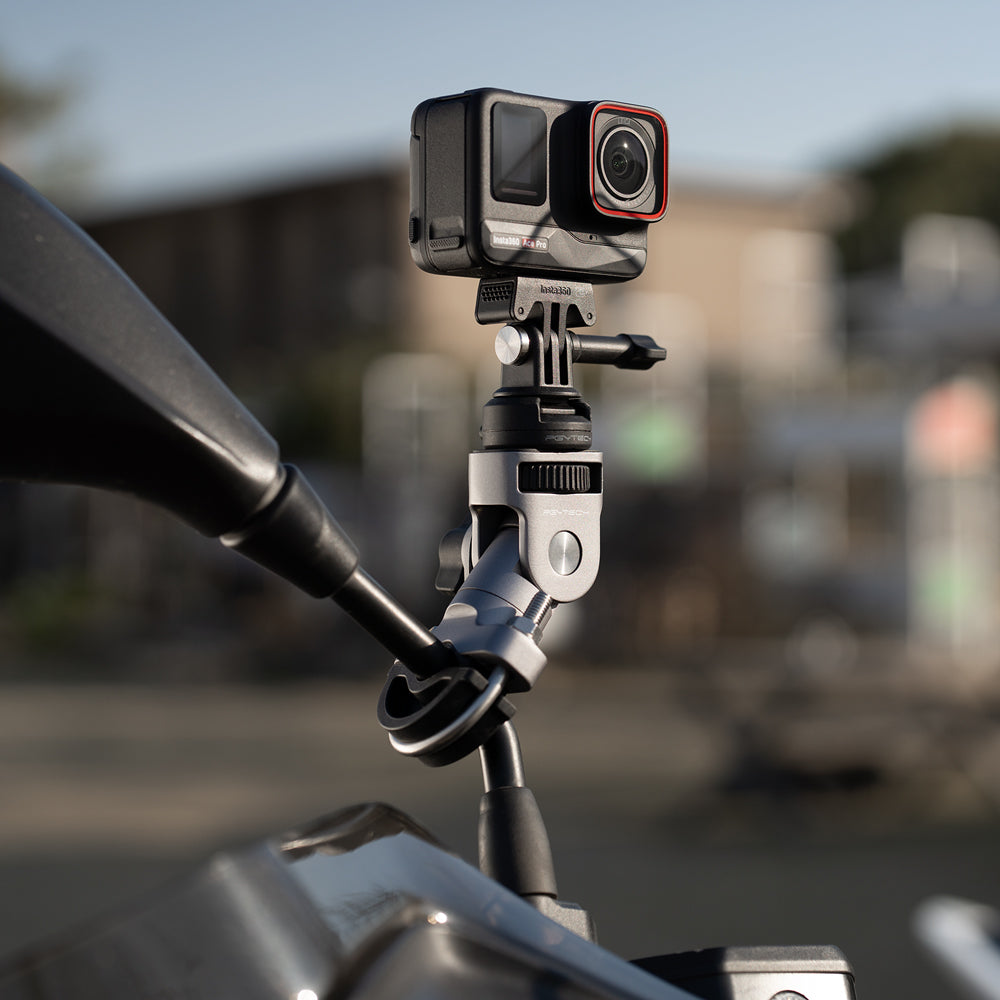

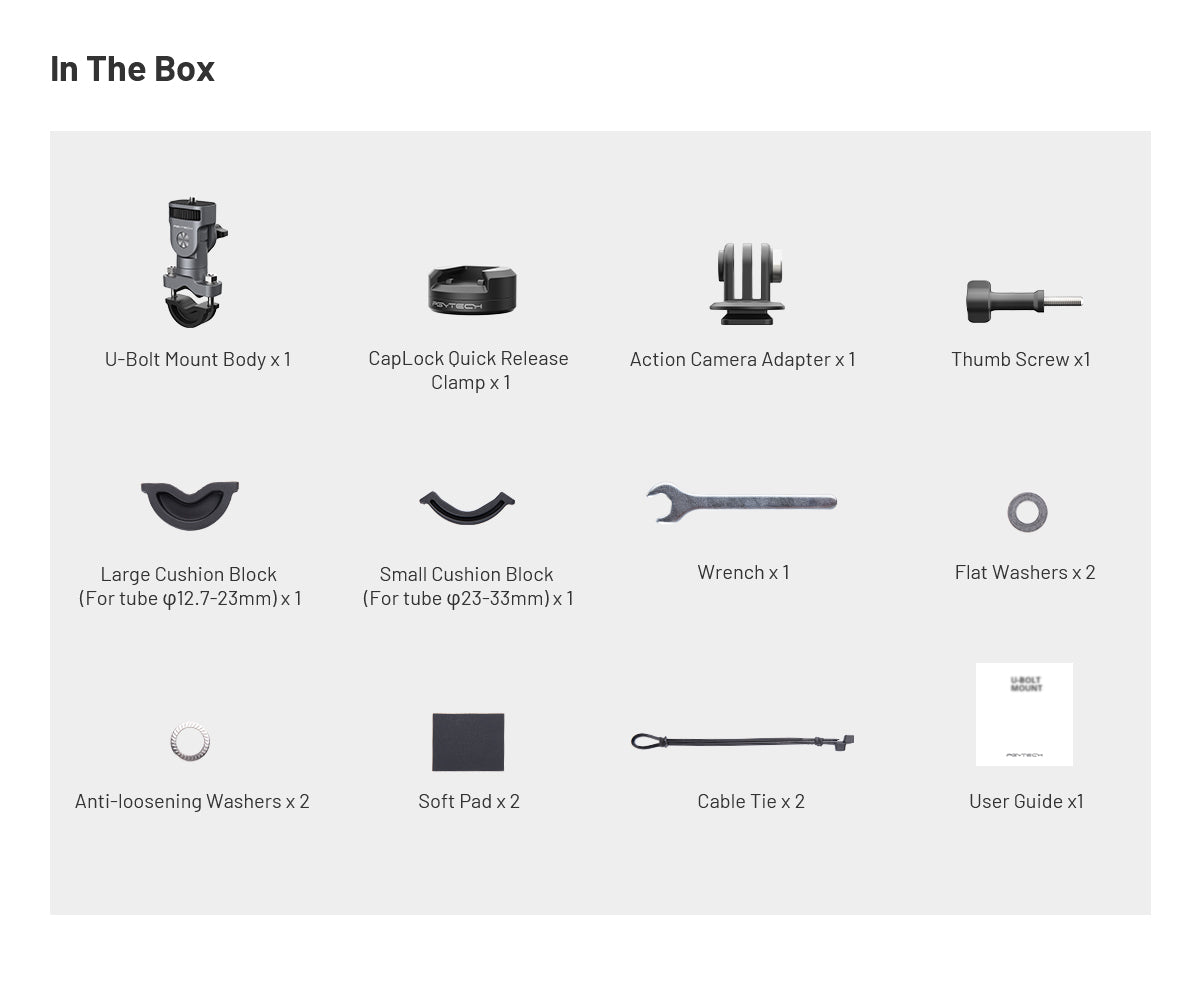

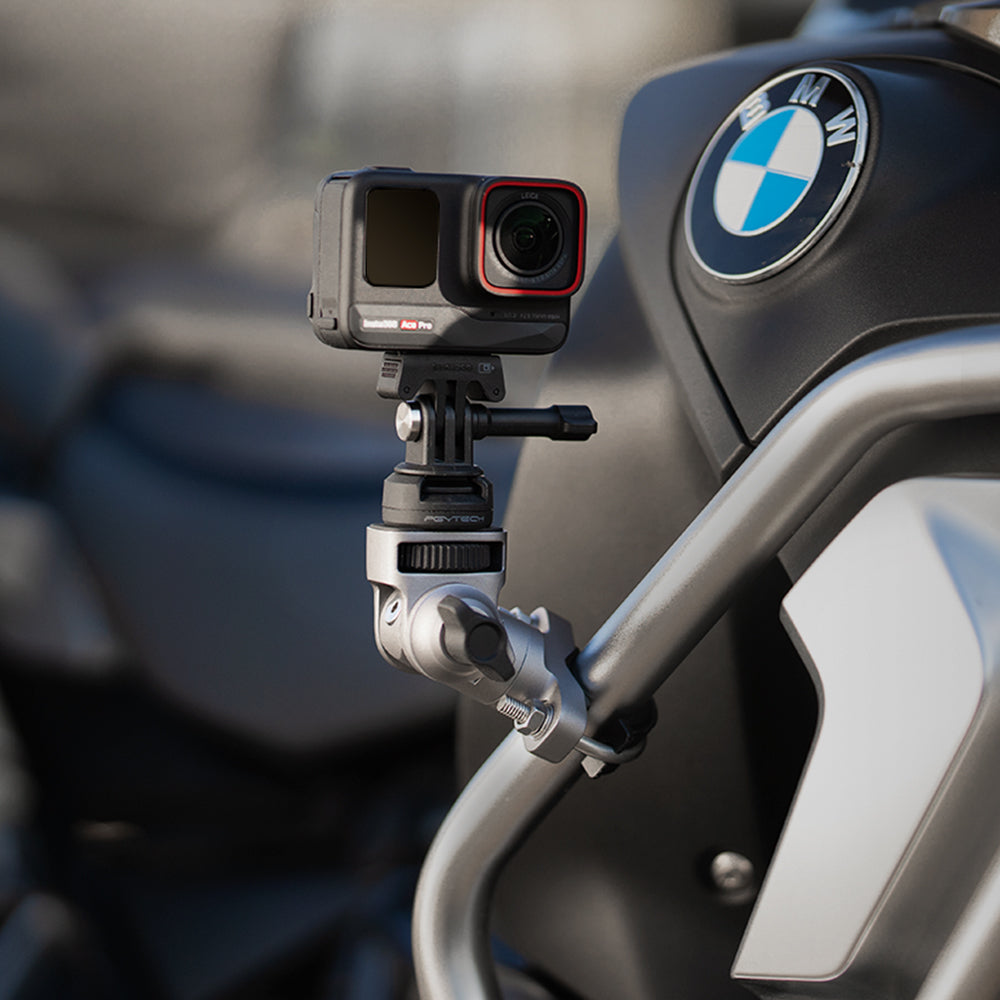

    The U-bolt mount can adapt to φ12.7~33mm tubes, commonly used for clamping to vehicle handlebars or crossbars. The base is equipped with two different sized cushion blocks for small tubes (φ12.7-23mm) and large tubes (φ23-33mm). Users can choose the block based on the specific size of their handlebars.

  • 5. What photography products are compatible with the U-bolt mount?

    The U-bolt mount can be used with accessories such as an extension rod (up to 1m) or a phone clamp, suitable for action cameras and smartphones weighing up to 350g.

  • 6. How can I connect the U-bolt mount to the product?

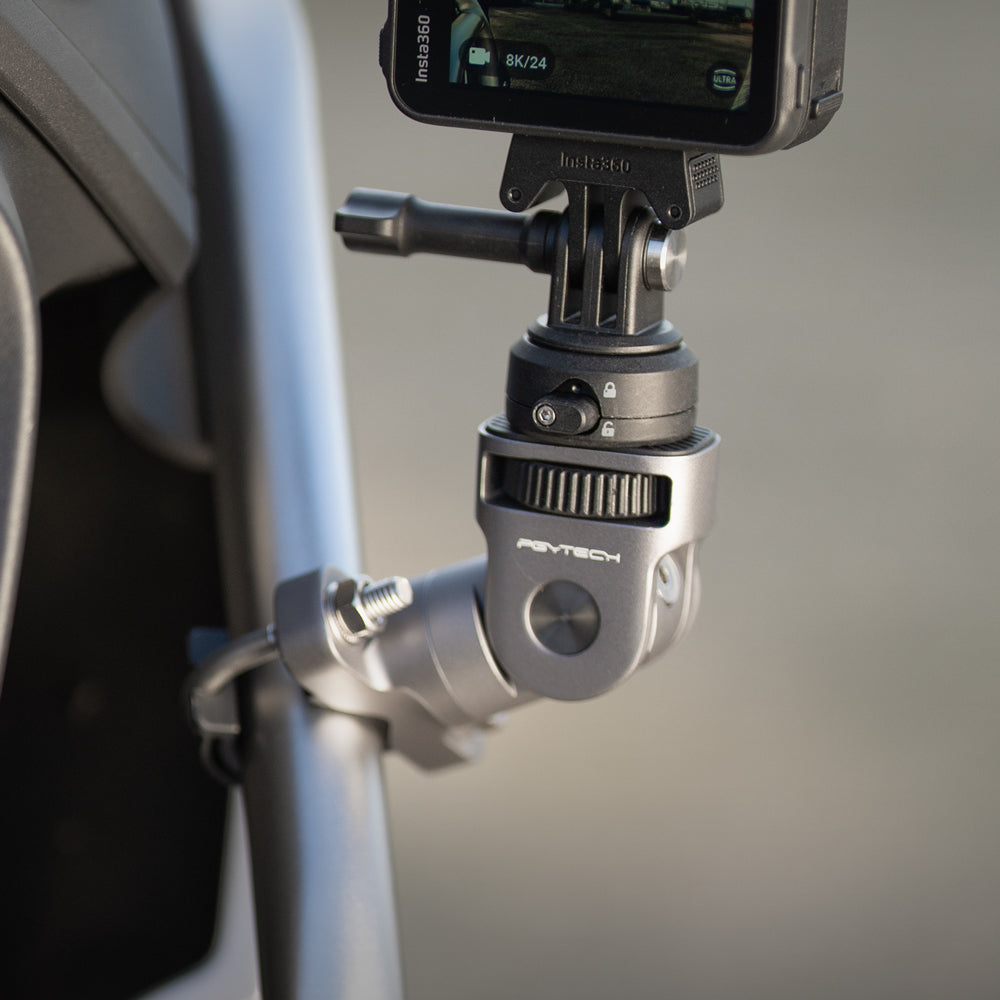

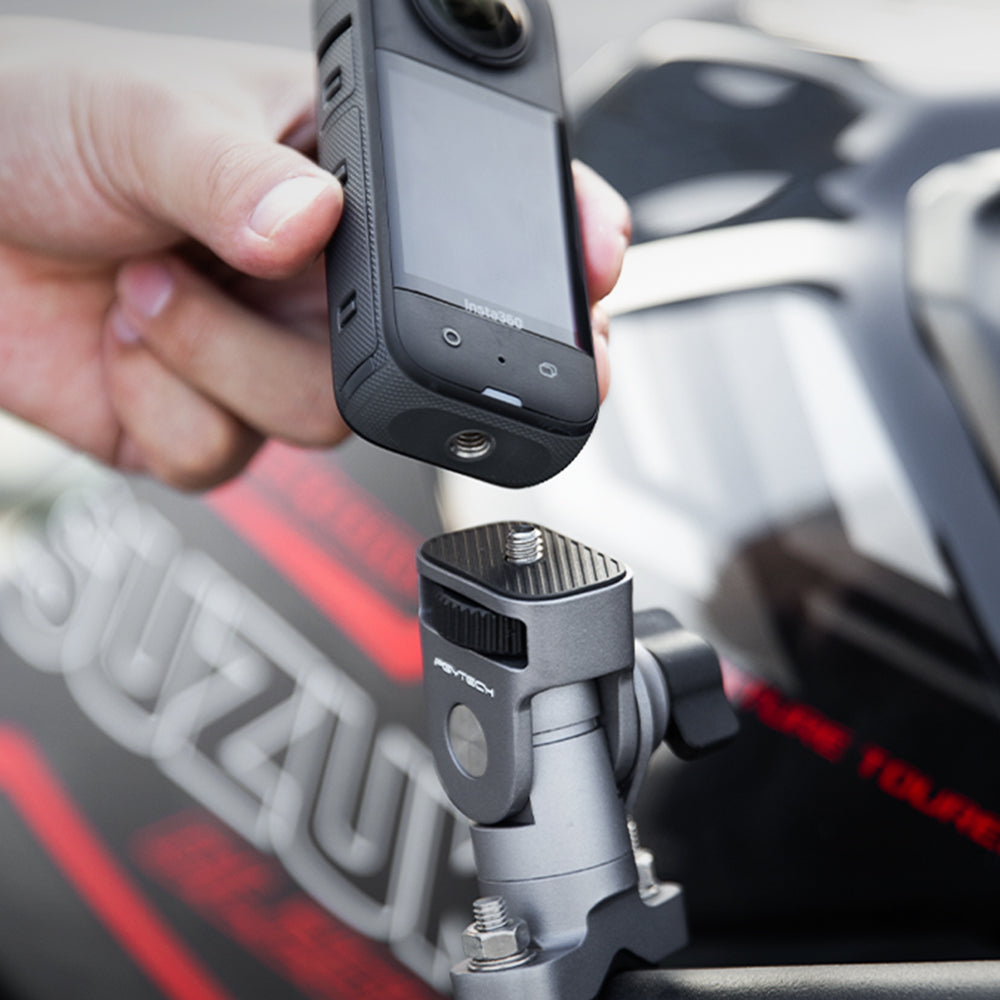

    The product can be directly connected to the U-bolt mount via a 1/4" interface. Additionally, it comes with a CapLock quick-release clamp and an action camera adapter. Users can choose and combine these accessories for more efficient device assembly and disassembly.
    Note: The CapLock quick-release clamp should not be directly connected to the extension rod to avoid the risk of breakage.

  • 7. How do I connect the U-bolt mount to an extension rod?

    The extension rod should be able to connect and install through the 1/4" interface on the U-bolt. Do not use other accessories to connect extension rod to the U-bolt.

  • 8. How to use the U-bolt mount safely?

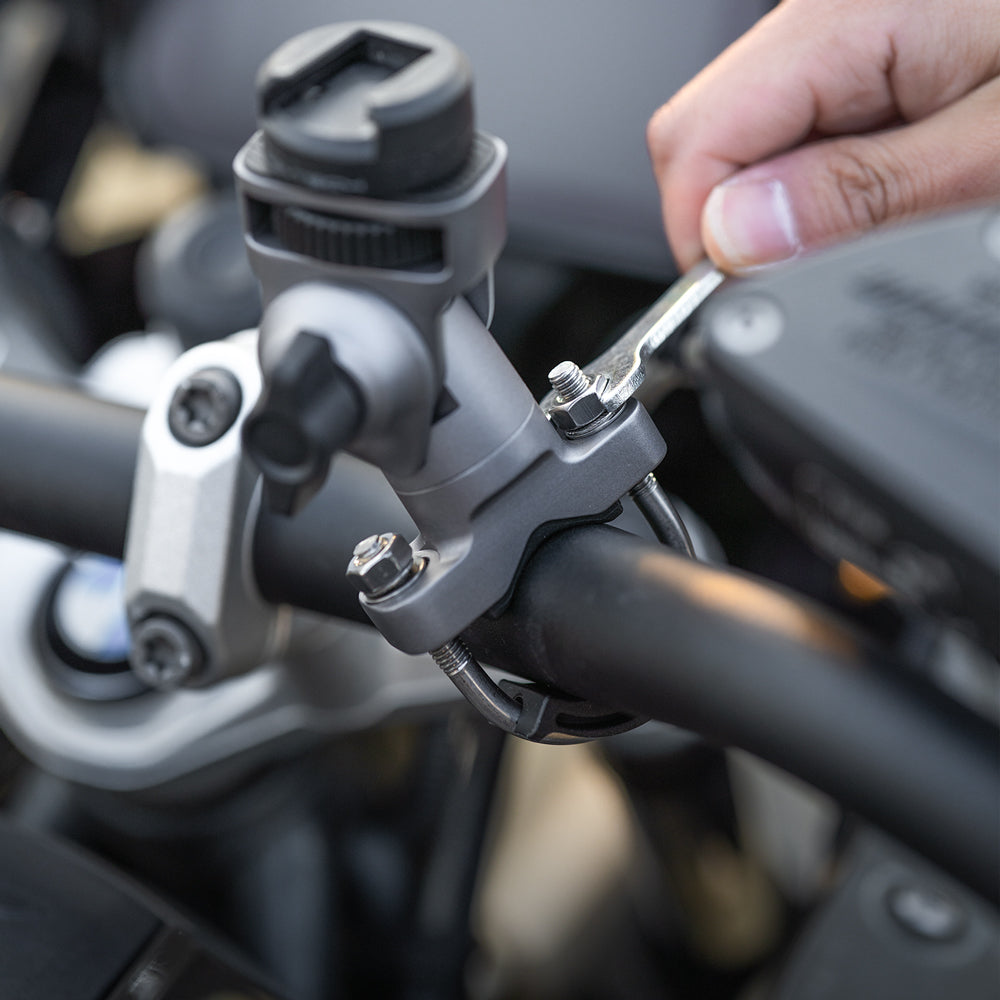

    If mounting the camera directly on the U-bolt, the speed for road cycling should not exceed 80km/h, and for off-road cycling, it should not exceed 40km/h. If the clamped object is a smooth metal tube, it is recommended to use the included wrench for additional locking.

  • 9. What range of angle adjustment does the U-bolt mount support?

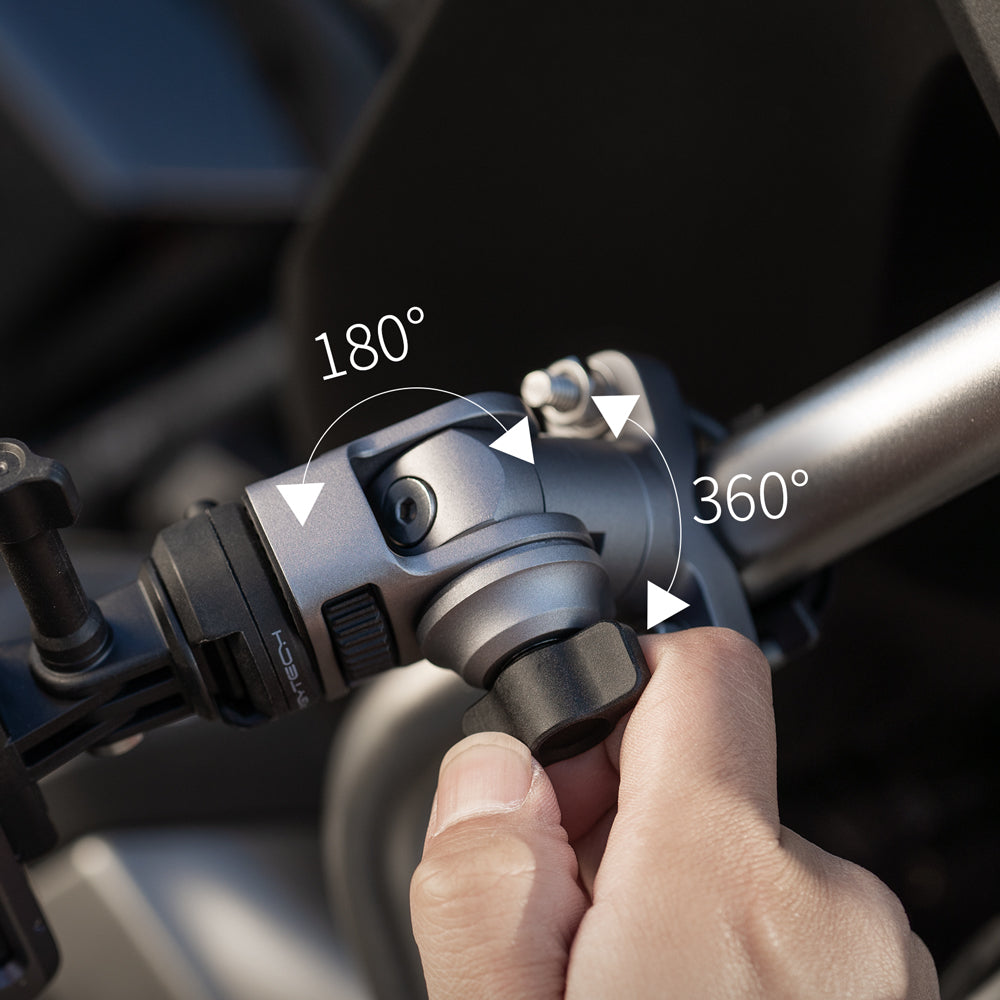

    The U-bolt mount features a single-knob adjustment design, allowing convenient operation and supporting dual-axis adjustment. It can rotate 360° and tilt 180°, meeting various shooting needs in different scenes and angles.

  • 10. Is the U-bolt mount suitable for low-temperature environments?

    The U-bolt mount is suitable for temperatures ranging from -10°C to 40°C.

  • 11. What is the warranty period for the U-bolt mount?

    This product comes with a one-year warranty service.
